The following instructions for installing the drawer handles apply only for the models, PRRD24C1AS, PRRD24C2AS, and PRRD24C2AS-OD. The contemporary handles replacement part number per
handle is 50280011, and the part number for each pro handle is 50280012.

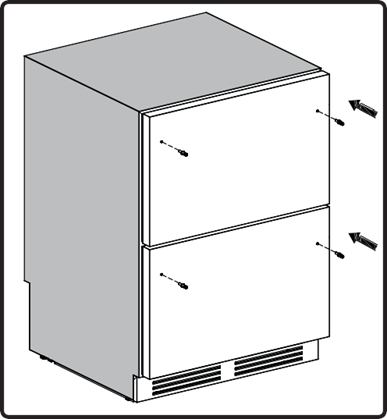

1. Secure (4) handle screws onto the drawers.

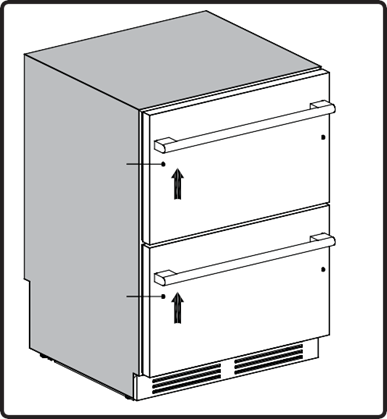

Install handles onto the drawers. Using the hex key, tighten the (2) set screws on the bottom of each panel.

Installing the Drawer Handles and Overlay Panel

Drawer handles are not included with the panel ready model, PRRD24C2AP. You may choose your own handles that match your cabinetry, or you may purchase Zephyr contemporary or pro handles. The part numbers are listed below.

NOTE: These handles are not compatible with PRRD24C1AS, PRRD24C2AS, and PRRD24C2AS-OD.

Zephyr Presrv Contemporary Handles

   Part #: PRHAN-C101    Color: Stainless Steel

  Part #: PRHAN-C102    Color: Brushed Gold

Part #: PRHAN-C104    Color: Matte Black

Zephyr Presrv Pro Handle

Part #: PRHAN-C001   Color: Stainless Steel

Installing the Drawer Handles and Overlay Panel

The following instructions for installing the drawer handles and overlay panel apply only for the model, PRRD24C2AP. You may install your own handle onto the wood overlay panel. Take care to measure and drill the handle screw holes accurately and source the appropriate screws (not included) unless using Zephyr PRHAN-Cxxx accessory handles.

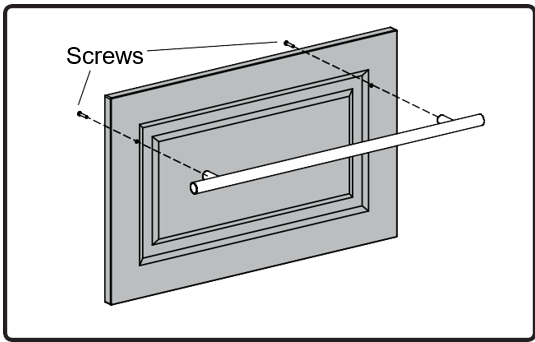

1a. Custom Handles: Drill (2) holes per overlay panel to install the handles. Refer to page 16 for measurements. Install each of the handles onto the overlay panels by

(2) screws.

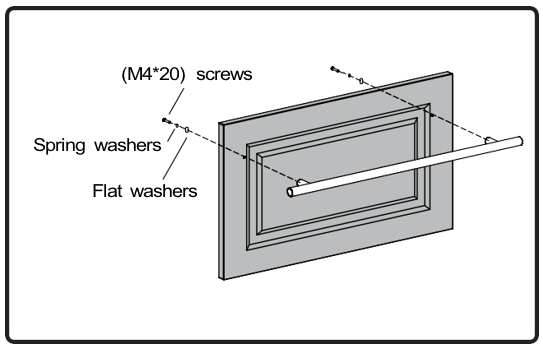

1b. Zephyr Handles: Drill (2) holes counterbore per overlay panel to install the handles. Install each of the handles onto the overlay panels by (2) M4*20 screws, spring washers, and flat washers.

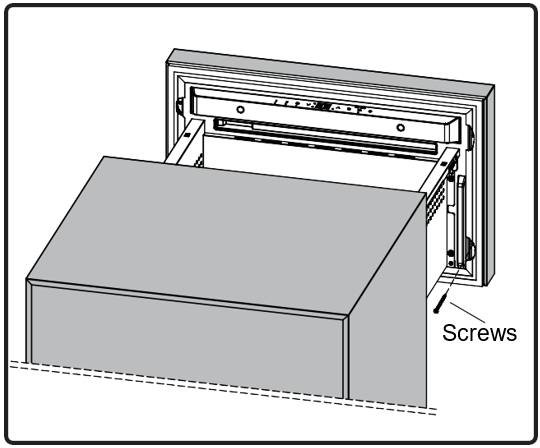

2. Pull out the drawer and push aside the door gasket to reveal screw holes where

(4) ST4*45 screws will be inserted per overlay panel.

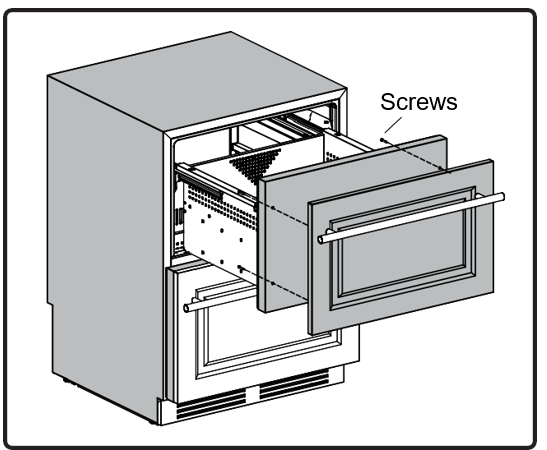

3. Clamp the overlay panel with the drawer door firmly with bar clamps and screw

(4) self-tapping screws for each overlay panel. Make sure the overlay panel is completely secured
