Installing & Removing Baffle Filters

To install Baffle Filters, follow the steps below:

Screenshot 2023-08-17 at 9.36.55 AM.png

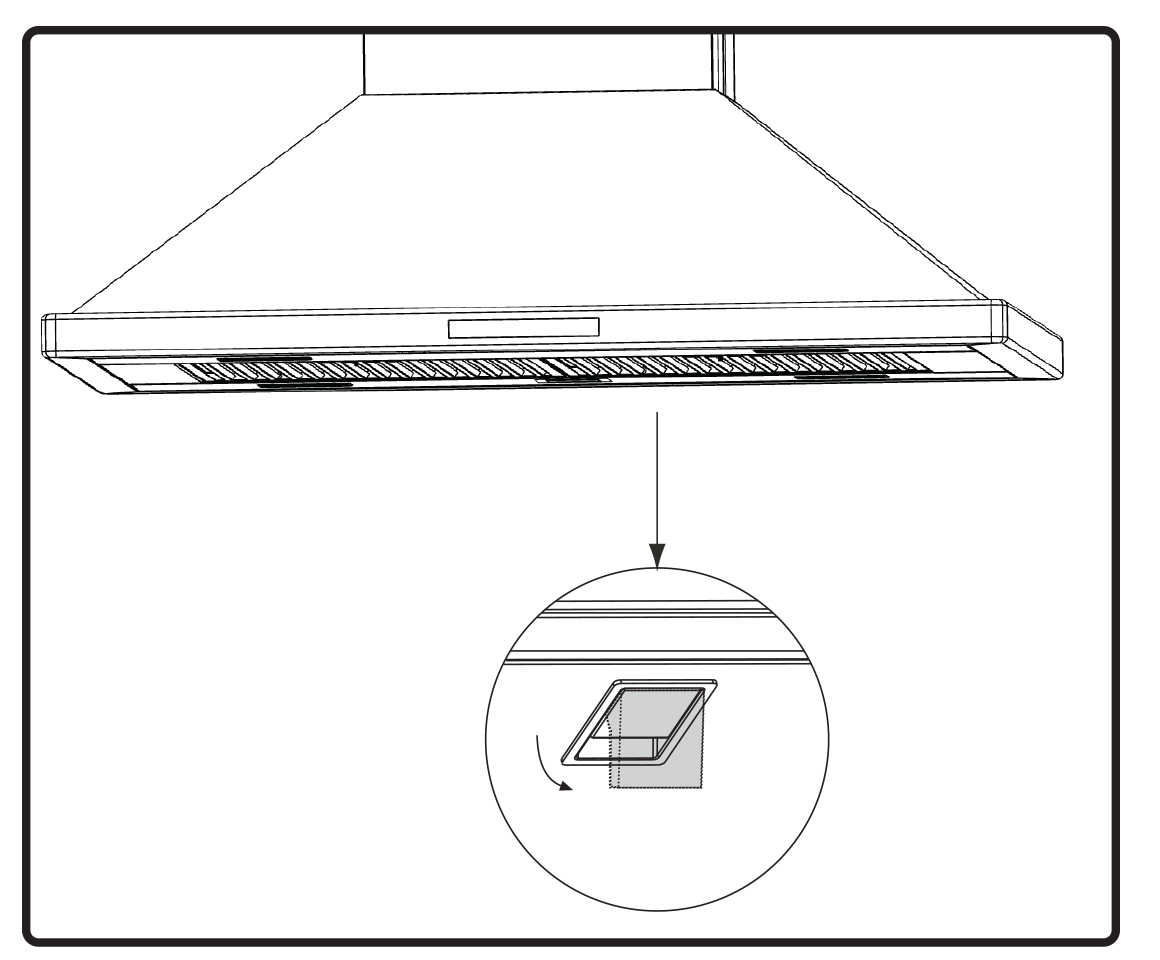

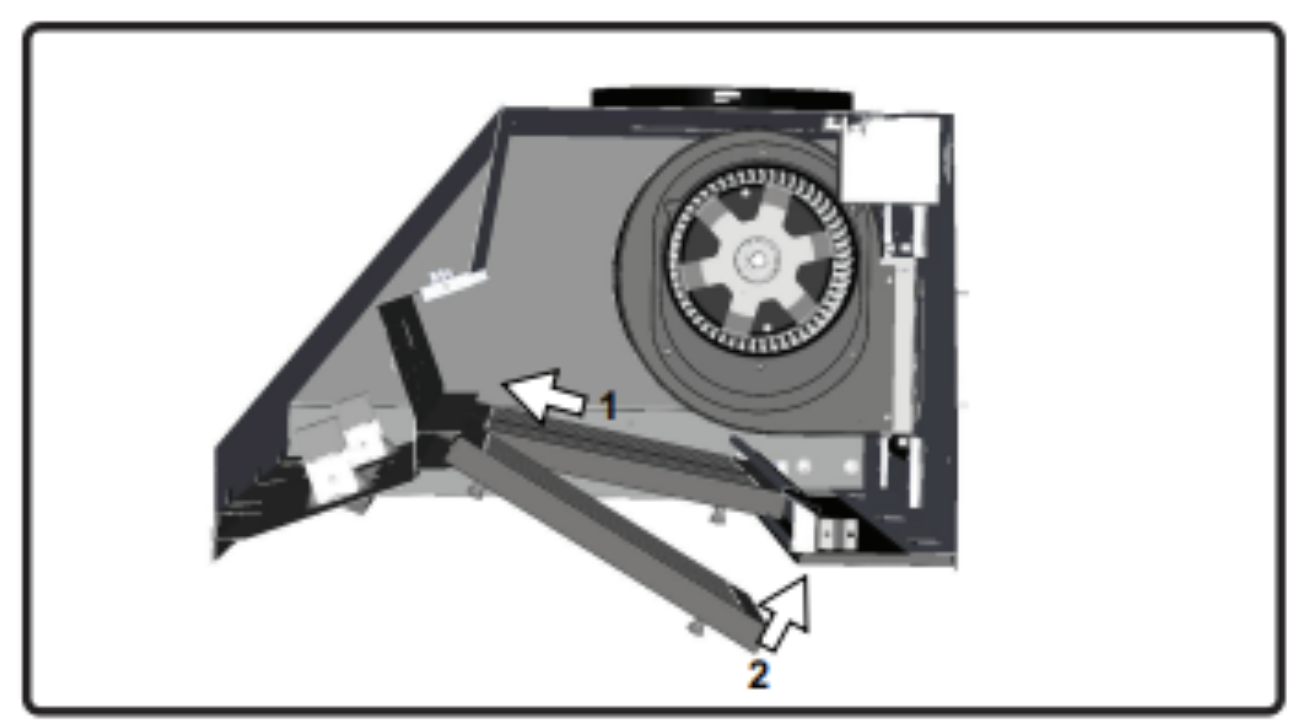

  1. Place the filter into the top groove of the liner as shown and pull towards the front of the liner using handles.
  2. Pivot back of filter upwards so it is angled in the liner.
  3. Push the filter into the channel on the back of the liner to lock into place

To remove the filter, reverse the process.
